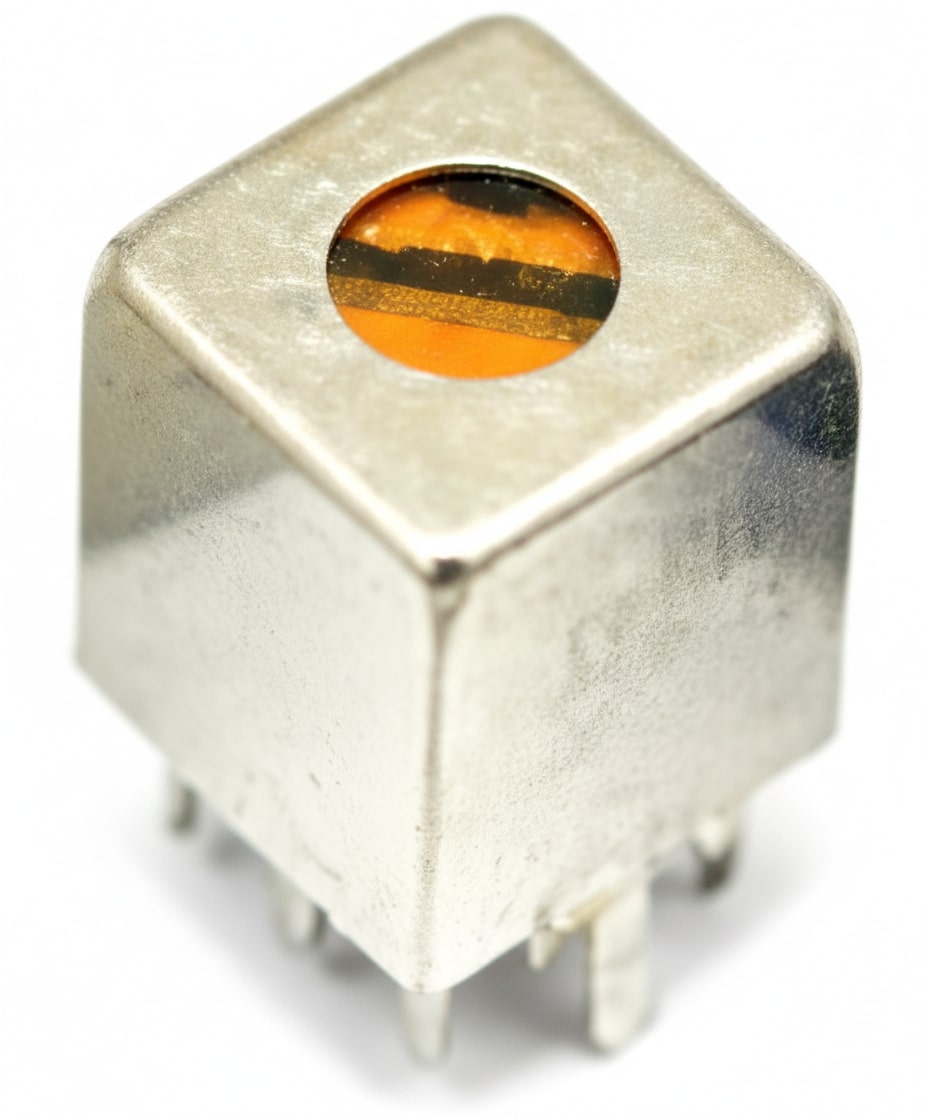

AC8178-XXX Series


Features

  • Variable radio frequency Coil.
  • Original design by Automatic Coil
  • Fully enclosed
  • Tested 100%
  • Built Per Mil standards
  • Leaded Solder.

Specifications

  • Operating temperature –57º C to 105º C
  • Packaging in tray



Click here to download electrical specs in PDF

All dimensions are in inches

Part  Number NSN  Number Inductance (UH) MIN Q  AT IND DCR MAX (OHM) DC CURRENT AT MAX  (mA) MIN SRF AT MAX  (MHZ)
AC8178-080 5950-01-023-1490 .0198-0.242 70 0.055 1600 250
AC8178-140 5950-01-023-1491 0.612-.0748 70 0.093 1250 173
AC8178-180 5950-01-068-5564 0.108-0.132 65 0.034 2100 250
AC8178-220 5950-01-068-5563 0.243-0.297 70 0.061 1500 250
AC8178-230 5950-00-449-0263 0.297-0.363 70 0.067 1450 230
AC8178-260 5950-01-068-5562 0.504-0.616 70 0.093 1300 200
AC8178-270 5950-00-444-6508 0.612-0.748 70 0.093 1250 173
AC8178-280 5950-01-022-9143 0.738-0.902 70 0.100 1200 150
AC8178-300 5950-01-067-5444 1.08-1.36 55 0.130 1000 120
AC8178-310 5950-01-064-7877 1.35-1.65 50 0.140 1000 110
AC8178-320 5950-01-023-2586 1.62-1.98 50 0.200 900 100
AC8178-330 5950-01-063-8040 1.98-2.45 50 0.260 800 88
AC8178-340 5950-01-067-5443 2.43-2.97 50 0.380 700 83
AC8178-350 5950-01-063-8041 2.97-3.63 50 0.510 600 78
AC8178-360 5950-01-068-1356 3.51-4.29 50 0.700 500 71
AC8178-370 5950-01-063-8042 4.23-5.17 50 0.880 400 64
AC8178-380 5950-00-413-1271 5.04-6.16 50 1.30 360 58
AC8178-390 5950-01-023-1493 6.12-7.48 55 1.70 280 52
AC8178-400 5950-01-067-5441 7.38-9.02 55 1.90 270 46
AC8178-410 5950-01-023-1493 9.00-11.0 55 2.00 260 40
AC8178-420 5950-01-068-1932 10.8-13.6 55 2.10 255 10.5
AC8178-430 5950-01-072-2268 13.5-16.5 60 2.20 250 10

All specifications are subject to change without notice • Can be customized to your specific application
