CL2Q12-12


Features

  • Radio Frecuency Transformer.
  • Original design by Automatic Coil
  • Tested 100%
  • Built Per Mil standards
  • Header
  • Square Pins

Specifications

  • Operating temperature –55º C to 125º C
  • Packaging in tray



Click here to download electrical specs in PDF

All dimensions are in millimeters.

Part Number NSN Number Parameter Test Conditions Limits Units
Min Max

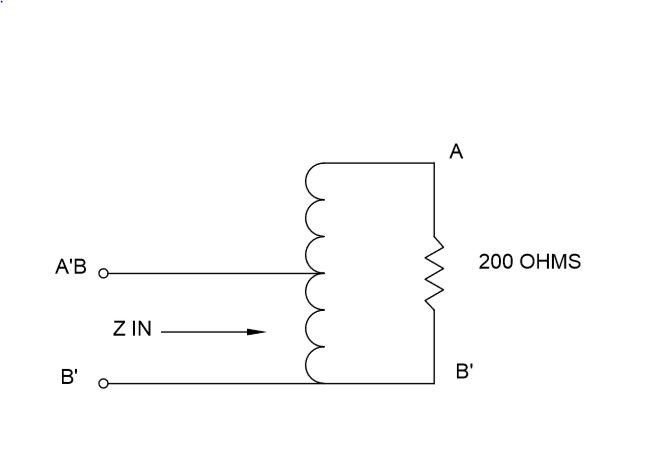

CL2Q12-12 5950-01-390-3474 IMPEDANCE (Z IN) FREQ = 30 MHz 45 55 Ohms
FREQ = 88 MHz 45 55 Ohms

All specifications are subject to change without notice • Can be customized to your specific application
