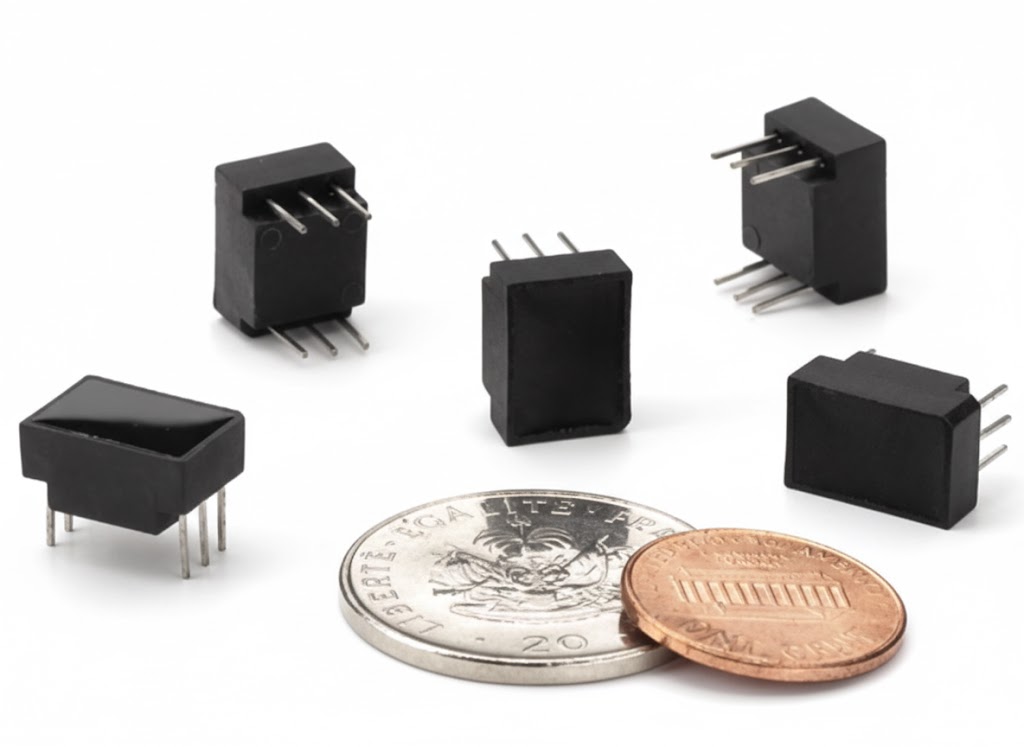

MN574 – Pulse Transformers


Features

  • Turns ratio primary to secondary 1: 1.5
  • DC resistance between 1 to 2 is 1.5 Ohm max.
  • Inductance L between 3 to 4 is 7 mH min.
  • Leakage Inductance between 1 to 2 with 3 and 4 shorted is 6 µH max.
  • Common mode rejection between primary and secondary is 50 dB minimum.
  • The rise time is less than 90 nano-seconds.
  • Custom designs and values are available.

All specifications are subject to change without notice • Can be customized to your specific application
