6950


$19.26$33.14

Dash #

1-9

10-99

100-499

499-1000

1000 +

Standard

1-46

$19.26

$15.40

$11.57
$9.64
$7.71

47-53

$20.22

$16.20

$12.14

$10.12

$8.08

54-58
$21.13
$16.91
$12.67
$10.57
$8.44
59-61
$22.06

$17.65

$13.24
$11.03
$8.81
62-63
$22.83
$18.27
$13.67
$11.41
$9.12
64-65
$23.74
$18.99

$14.24

$11.87
$9.50
66-67
$24.58

$19.65

$14.74
$12.28
$9.82
68-69
$26.55
$21.25
$15.93
$13.27
$10.63
70-71

$28.27

$22.62

$16.97

$14.15

$11.32
72-73
$30.15
$24.10
$18.08
$15.07
$12.08

RoHS Compliant

1-46

$21.19

$16.96

$12.72
$10.58
$8.48

47-53

$22.26

$17.80

$13.64

$11.12

$8.91
54-58

$23.26

$18.62
$13.96
$11.62
$9.30
59-61
$24.27
$19.40
$14.56
$12.14
$9.71
62-63
$25.09
$20.07
$15.05
$12.56
$10.03
64-65
$26.11
$20.88
$15.66
$13.06
$10.44

66-67

$27.09
$21.61

$16.22

$13.51
$10.82
68-69
$29.23
$23.37

$17.53

$14.61
$11.68
70-71
$31.11
$24.90
$18.69
$15.57

$12.44

72-73
$33.14
$26.52

$19.88

$16.57
$13.26




Choose an option
Choose an option
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
LEADED
LEADED
RoHS COMPLIANT
RoHS COMPLIANT
Clear
SKU: 6950 Category:

Description



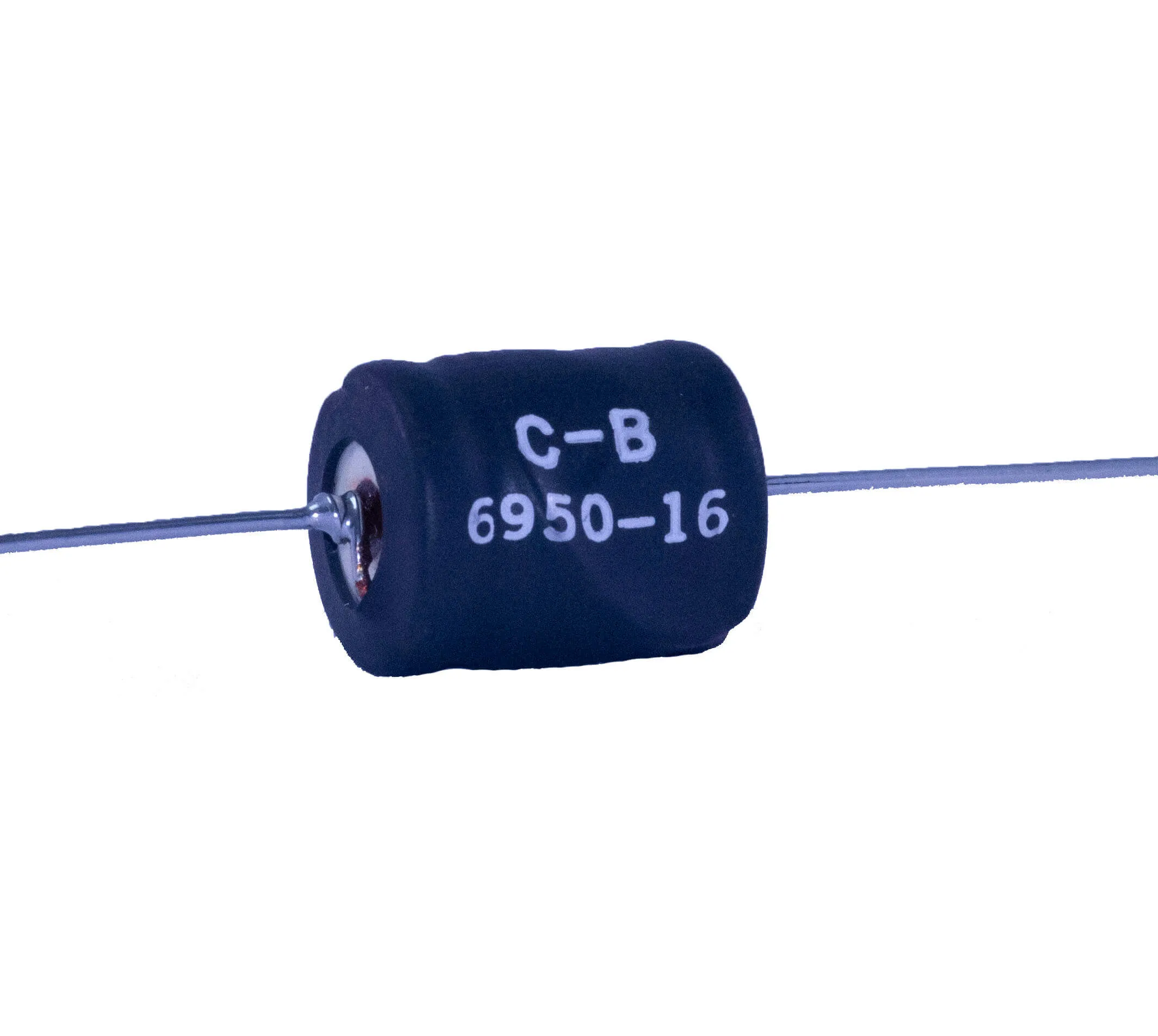

CHOKE HIGH CURRENT 180 uH, 10%, 3500MA

HIGH CURRENT CHOKES
Type 6950 10μH – 10mH – 10% Tolerance.

Recommended Mounting Pitch – 1.40′

3. INCREMENTAL CURRENT (INCR I) is the minimum current at which the

inductance will be decreased by 5% from its initial (zero-DC) value.

4. DIELECTRIC WITHSTANDING VOLTAGE – 1000 VRMS
5. OPERATING TEMPERATURE RANGE: -55° to +105°C
6. Leads are bare tinned copper: -1 thru -7, #14 AWG; -8 thru -73, #16 AWG.
1. INDUCTANCE measured on QuadTech/GenRad

1659 RLC Digibridge at 1.0 KHZ

7. Materials:

Coil Form: Ferrite

Magnet Wire: Per FED SPEC J-W-001177/9

Jacket: Per MIL-I-23053/5, Class 1 / Flame Retardant IAW UL 224, Class 1.

2. CURRENT RATING (Rated IDC) is based on 1.0 watt power dissipation for approximately 20°C temperature rise. Depending on the application, these units may be operated at up to twice the rated current.
8. Marking – Printed with Cadell-Burns Part Number.

STANDARD VALUES: Other values are available on special order

Dash Nominal DCR ±20% Min. SRF Rated IDC INCR I
No Inductance Ohms MHz Amps Amps
-01  10 μH .007 12 12,000 35,000
-02 12 .008 8.0 11,200 32,600
-03 15 .009 6.0 10,500 28,400
-04 18 .010 5.7 10,000 25,900
-05 22 .011 5.3 9500 23,800
-06 27 .012 5.0 9100 21,000
-07 33 .013 4.5 8800 18,700
-08 39 .020 3.4 7100 17,600
-09 47 .022 3.2 6700 16,300
-10 56 .034 2.6 5400 14,700
-11 68 .038 2.4 5100 13,300
-12 82 .042 2.2 4900 12,400
-13 100 .048 1.9 4600 11,100
-14 120 .054 1.7 4300 10,100
-15 150 .073 1.5 3700 9100
-16 180 .082 1.3 3500 8300
-17 220 .091 1.2 3300 75600
-18 270 .12 1.1 2900 6800
-19 330 .13 1.0 2800 6100
-20 390 .18 .92 2400 5600
-21 470 .20 .84 2200 5100
-22 560 .26 .78 2000 4700
-23 680 .30 .69 1800 4300
-24 820 .40 .56 1600 3900
-25 1.0 mH .45 .54 1500 3500
-26
1.2 .50 .50 1400 3200
-27
1.5 .70 .45 1200 2900
-28
1.8 .80 .43 1100 2600
-29
2.2 1.1 .42 950 2400
-30
2.7 1.2 .40 910 2100
-31
3.3 1.6 .28 790 1900
-32
3.9 1.8 .26 750 1800
-33
4.7 2.4 .23 650 1600
-34
5.6 2.6 .21 620 1500
-35
6.8 3.0 .20 580 1300
-36
8.2 4.0 .19 500 1200
-37
10 4.6 .18 470 1100
-38
12 mH 6.1 16 400 1000
-39
15 7.1 .15 380 910
-40
18 9.6 .14 320 830
-41
22 11 .12 300 750
-42
27 13 .095 280 680
-43
33 15 .085 260 610
-44
39 21 .077 220 560
-45
47 24 .067 200 510
-46
56 33 .065 180 470
-47
68 36 .062 170 430
-48
82 41 .057 160 390
-49
100 55 .051 140 350
-50
120 60 .048 130 320
-51
150 84 .040 110 290
-52
180 94 .033 100 260
-53
220 110 .032 95 240
-54
270 127 .030 88 210
-55
330 165 .027 78 190
-56
390 220 .023 67 180
-57
470 240 .021 65 160
-58
560 330 .020 55 150
-59
680 360 .017 53 130
-60
820 400 .016 50 120
-61
1.0 H 570 .014 42 110
-62
1.2 650 .013 40 100
-63
1.5 740 .012 37 90
-64
1.8 1000 .011 32 83
-65
2.2 1100 .010 30 75
-66
2.7 1500 .0090 26 68
-67
3.3 1700 .0085 24 61
-68
3.9 2200 .0080 21 56
-69
4.7 2500 .0073 20 51
-70
5.6 3500 .0062 17 47
-71
6.8 4000 .0058 16 43
-72
8.2 4800 .0050 15 39
-73
10 5400 .0042 14 35

                                           TYPICAL Q CURVES (TYPE 6950)

All specifications are subject to change without notice • Can be customized to your specific application
