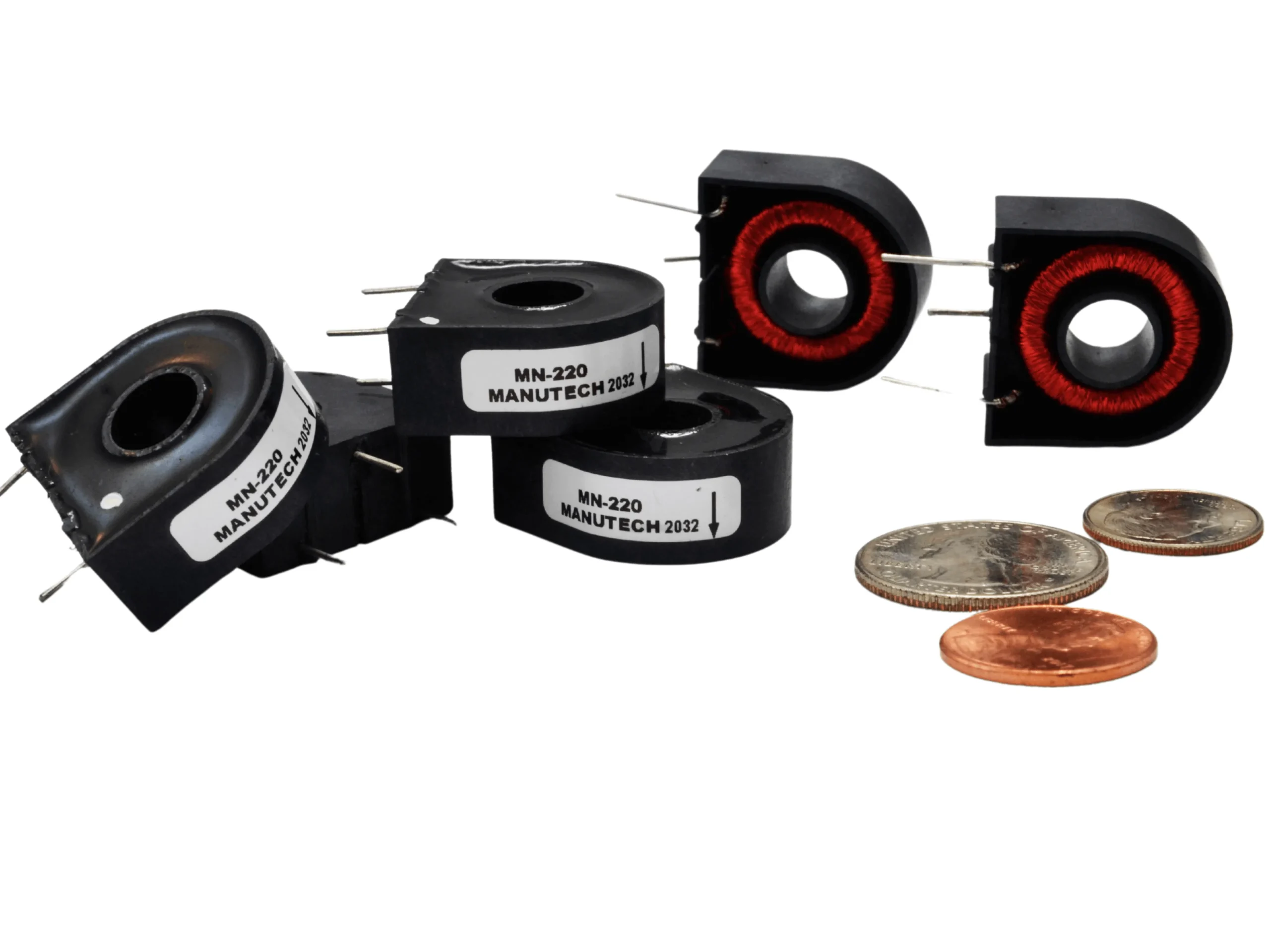

MN220 – AC Current Sense Transformers
Category:
Transformers
Description
Description
Features
1 to 20 Amps @ 50 Hz
UL and VDE recognized class B material.
Hi-pot 4000 Volts RMS
Printed circuit board mounting terminals.
Other current rating and specifications available
Specifications
From 50 Hz to 400 Hz.
Turns ratio: Primary to secondary 1:1000
Winding DCR: 40 Ohms Max.
Suggested burden resistor: 100 Ohms.
AC output voltage proportional to AC current input.
Output at 100 Ohms: 100 mV/Amp.
Various ranges of output are achievable by using different burden resistors
Mechanical Specs
Electrical Specs
All specifications are subject to change without notice • Can be customized to your specific application
