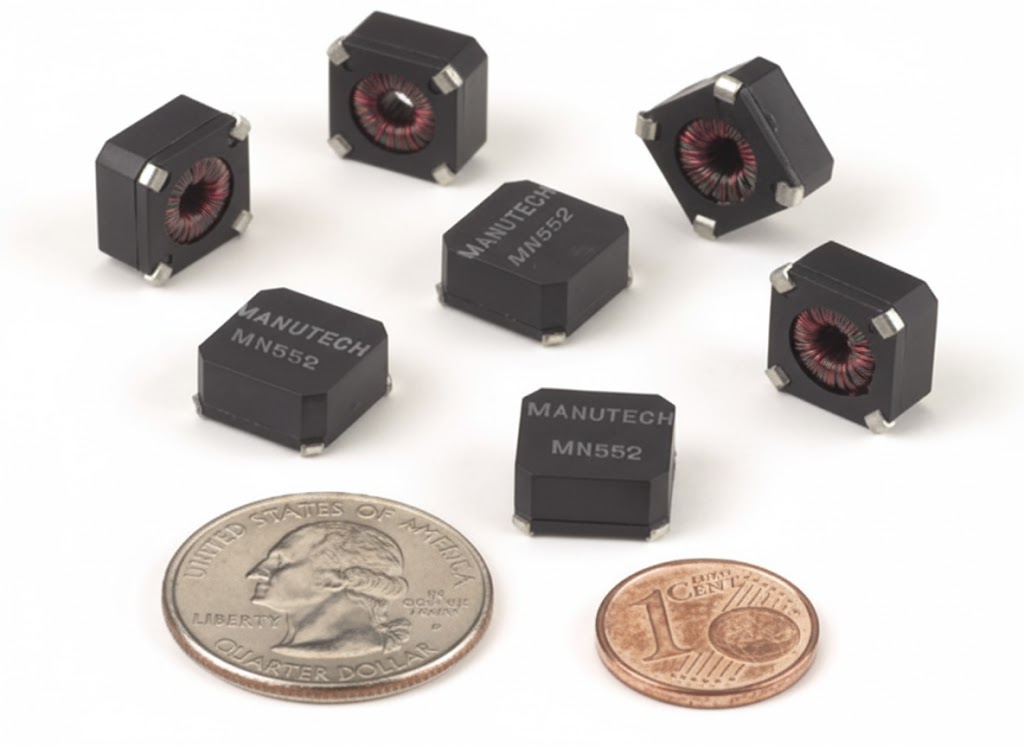

MN552 – Common Mode Filters, Surface Mount

MN552 - Common Mode Filters, Surface Mount

Category:

Description

Features

  • Reduce AC interference.
  • Reduce in-phase noise signals.
  • Reduce EMI in-line power.
  • Lead pads coplanarity 0.05 mm max.
  • UL94V0 Header Material.



Related products

Manutech Part Number Inductance @ 10 kHz µ ± 30% DCR Ω Max Current Rating ADC Leakage Inductance µH Ref Interwinding Capacitance pF Ref.
MN552-100 10 0.035 3.0 2.2 2.6
MN552-250 250 0.055 2.4 4.5 4.0
MN552-500 500 0.095 1.8 7.0 5.2
MN552-750 750 0.150 1.5 11.0 6.0
MN552-1000 1000 0.210 1.2 13.0 7.0

All specifications are subject to change without notice • Can be customized to your specific application
