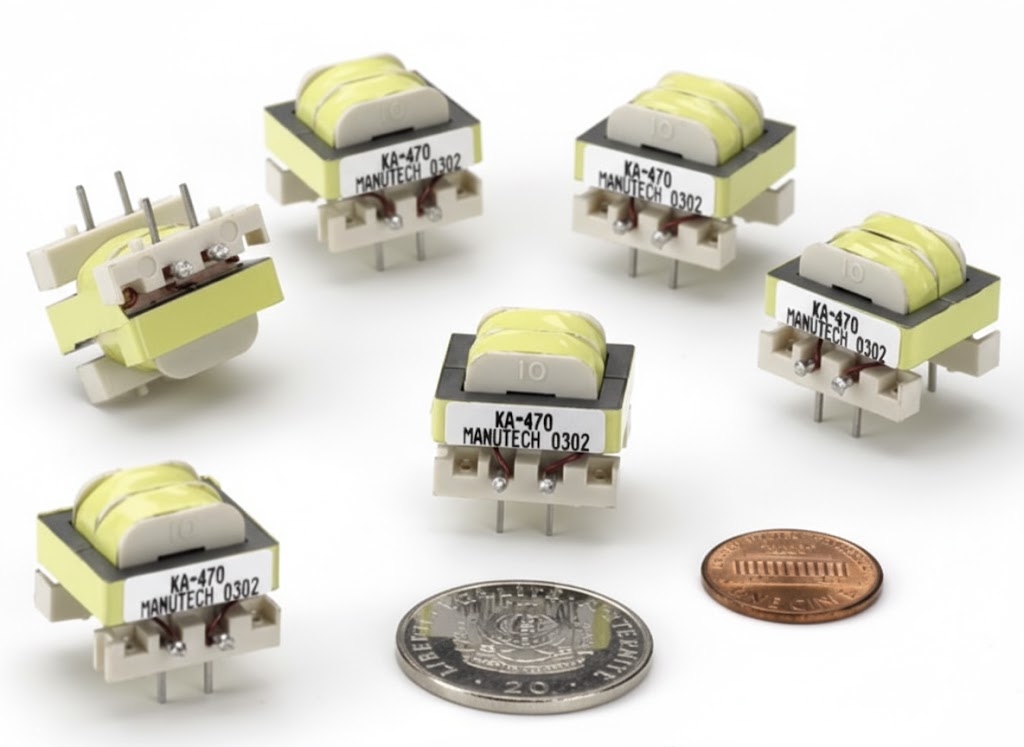

MN606 – Common Mode Transformers


Features

  • Windings are balanced to within 1%.
  • Winding to winding dielectric strength 2500 VAC.
  • Inductance is measured at 1 KHz and initial permeability.



All dimensions are in inches

Manutech Part Number Inductance +/- 20% L=µH DCR Res. Ohms AC Current Amps Leakage Inductance µH
MN606-100 100 0.015 2.3 2.6
MN606-120 120 0.015 2.3 3.4
MN606-150 150 0.016 2.3 3.9
MN606-180 180 0.019 2.3 4.5
MN606-220 220 0.021 2.3 5.6
MN606-270 270 0.028 2.1 6.1
MN606-330 330 0.031 2.0 7.6
MN606-470 470 0.038 2.0 11.0
MN606-560 560 0.059 1.8 13.0
MN606-680 680 0.062 1.6 16.0
MN606-820 820 0.068 1.3 19.0
MN606-1000 1,000 0.081 1.2 24.0
MN606-1200 1,200 0.089 1.0 27.0
MN606-1500 1,500 0.115 1.0 32.0
MN606-1800 1,800 0.130 1.0 40.0
MN606-2200 2,200 0.176 0.9 47.0
MN606-2700 2,700 0.192 0.8 60.0
MN606-3300 3,300 0.270 0.6 71.0
MN606-3800 3,800 0.291 0.5 87.0
MN606-4700 4,700 0.354 0.4 107.0
MN606-5600 5,600 0.391 0.4 122.0
MN606-6800 6,800 0.448 0.4 144.0
MN606-8200 8,200 0.639 0.3 181.0
MN606-10000 10,000 0.718 0.3 221.0
MN606-12000 12,000 0.910 0.2 260.0
MN606-15000 15,000 1.000 0.2 331.0
MN606-18000 18,000 1.300 0.1 400.0
MN606-22000 22,000 1.450 0.1 473.0
MN606-27000 27,000 2.100 0.1 615.0
MN606-33000 33,000 2.200 0.1 735.0

All specifications are subject to change without notice • Can be customized to your specific application
